Better Plotly Bar Chart

I’m reading “storytelling with data” by Cole Nussbaumer Knaflic. I plan to write my thoughts and insights from the book once I finish it. For now, I wanted to play with it a bit and create a better bar chart visualization that –

  1. Highlight the category you find most important and assign a special color to it (i.e prominent_color in the code), while the remaining categories used the same color (i.e. latent_color)
  2. Remove grids and make the background and paper colors the same to remove cognitive load.

The implementation is flexible, so if you feel like changing one of the settings(i.e., show the grid lines or center the title) you can pass it via keyword arguments when calling the function.

from typing import Any
import pandas as pd
import plotly.graph_objects as go
import pandas as pd
def barchart(
df: pd.DataFrame, x_col: str, y_col: str,
title: str | None = None,
latent_color : str = 'gray',
prominent_color: str = 'orange',
prominent_value: Any | None = None,
**kwargs: dict,
) -> go.Figure:
"""_summary_
Args:
df (pd.DataFrame): Dataframe to plot
x_col (str): Name of x coloumn
y_col (str): Name of y coloumn
title (str | None, optional): Chart title. Defaults to None.
latent_color (str, optional): Color to use for the values we don't want to highlight. Defaults to 'gray'.
prominent_color (str, optional): Color to use for the value we want to highlight. Defaults to 'orange'.
prominent_value (Any | None, optional): Value of the category we want to highlight. Defaults to None.
Returns:
go.Figure: Plotly figure object
"""
colors = (df[x_col] == prominent_value).replace(False, latent_color).replace(True, prominent_color).to_list()
fig = go.Figure(data=[
go.Bar(
x=df[x_col],
y=df[y_col],
marker_color=colors
)],
layout=go.Layout(
title=title,
xaxis=dict(title=x_col, showgrid=False),
yaxis=dict(title=y_col, showgrid=False),
plot_bgcolor='white',
paper_bgcolor='white'
)
)
fig.update_layout(**kwargs)
return fig
if __name__ == "__main__":
data = {'categories': ['A', 'B', 'C', 'D', 'E'],
'values': [23, 45, 56, 78, 90]}
df = pd.DataFrame(data)

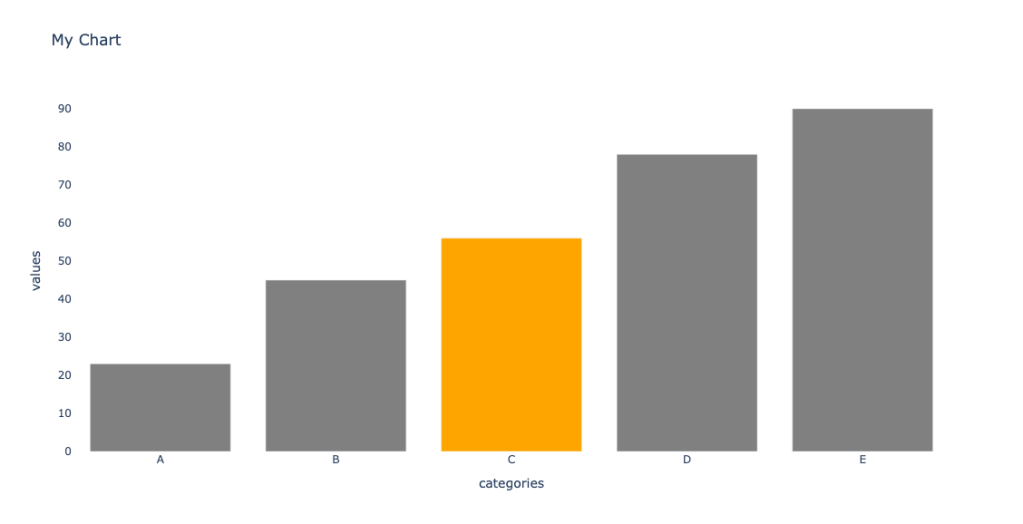

fig = barchart(df, 'categories', 'values', prominent_value='C', title='My Chart', yaxis_showgrid=True)
fig.show()
view raw barchart_stwd.py hosted with ❤ by GitHub
